Main Features:
● HD video transmission real-time FPV racing
● 600TVL CCD adjustable ( 0 – 60-degree ) camera gives low latency transmission and wider view

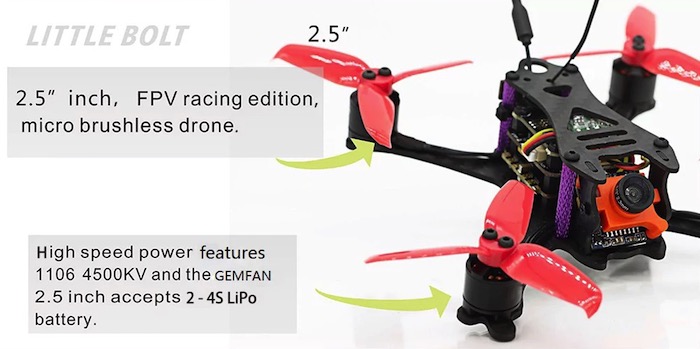

● Power system F4 FC + 4 in 1 ESC + 1106-4500KV motor gives fast speed ( the motor support 4S batteries or 14.8V voltage )
● BetaFlight firmware for optimized flight performance
Specifications:

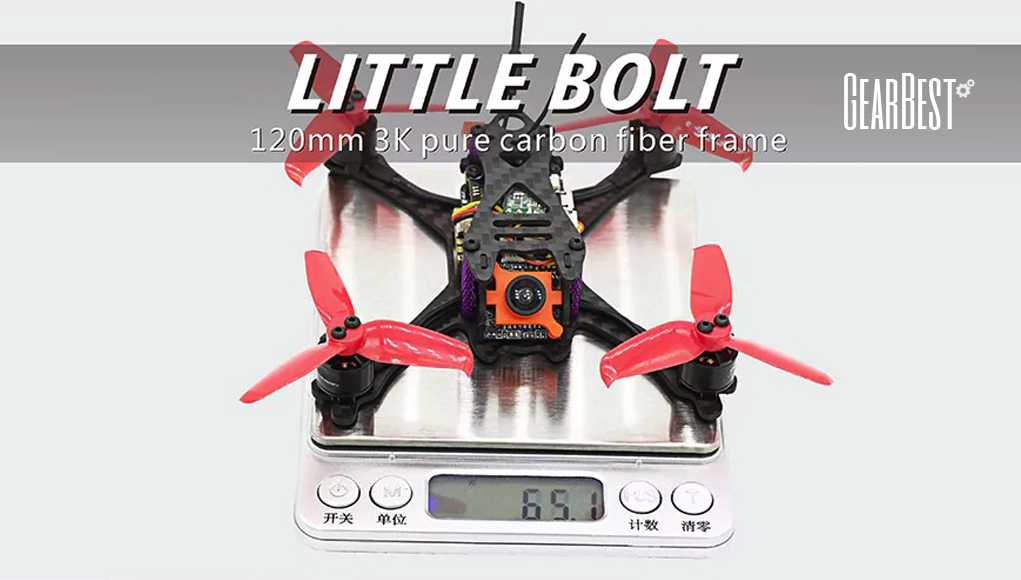

Wheelbase: 120mm
Top Plate Thickness: 1.5mm
Bottom Plate Thickness: 3mm
Side Plate CNC Thickness: 1.5mm
Material: 3K carbon fiber
Motor: 1106 4500KV
Propeller: GEMFAN 2.5 inch
Battery: no
Transmitter: no

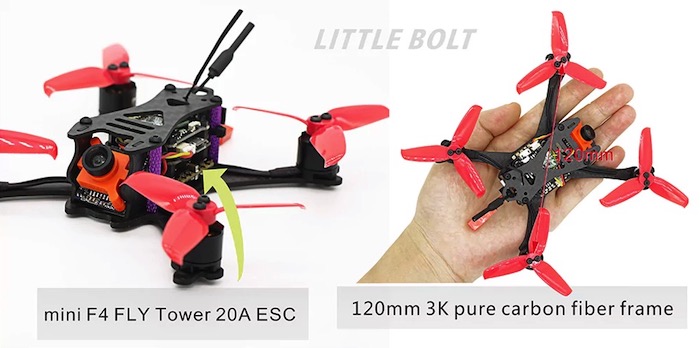

Micro F4 Flight Control Board ( DShot Version )
MPU: MPU6000-SPI
CPU: STM32F405RGT6, dual 8K
Built-in BetaFlight OSD to adjust PID
BEC Output: 5V 3A
Size: 25 x 25mm board
Installing Hole: 20 x 20mm
Mounting Hole: M2
Support S.UBS / PPM / DSMX receiver
20A 2 – 4S BLHeli – S 4 in 1 ESC
Input Voltage: 2 – 4S LiPo battery
Constant Current: 20A
Peak Current: 25A
BEC Ouput: no
Firmware: BLHeli – S
Size: 27 x 27mm ( main board ), 27 x 31mm ( including pad )
Installing Hole: 20 x 20mm ( M2 )
MOS Tube: top quality MOSFET
Support Damped mode, Oneshot125, Oneshot42, Multishot, Dshot150 / 300 / 600, forward and reverse
Video Transmitter
Output Power: 25mW / 100mW / 150mW switchable
BAT: 7 – 26V, BEC 5V 1A
Video System: NTSC / PAL
Frequency: 5.8GHz 5 bands 40 channels, with Raceband: 5645 – 5945MHz

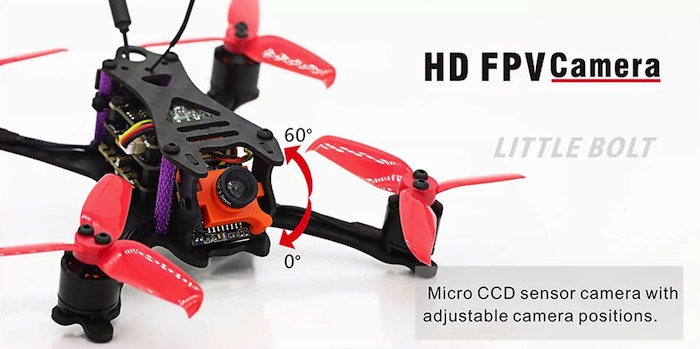

Camera
Image Sensor: 1/3 inch super HAD II CCD sensor
Horizontal Resolution: 600TVL
Lens: 2.3mm lens
FOV: 135 degrees ( 2.3mm )
Signal System: PAL / NTSC
S/N Ratio: more than 60dB ( AGC OFF )
Min. Illumination: 0.1Lux/1.2F
DNR: 2DNR
Day / Night: Color / Auto / B and W
Power: DC 5 to 36V
