720x540px 5.8G 72CH
Balance Plug For FPV Goggles Eachine EV100 and Fatshark
LiPo Battery 2S DC 7.4V 1000mah

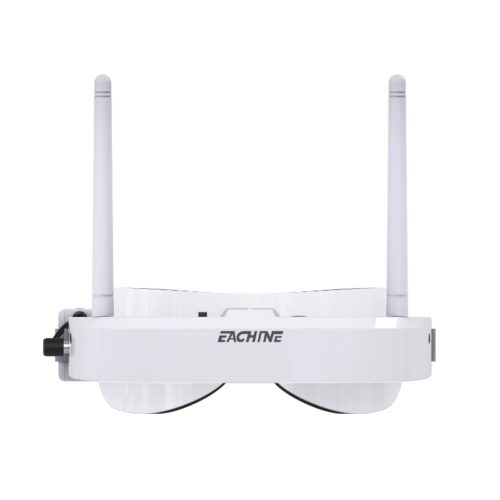

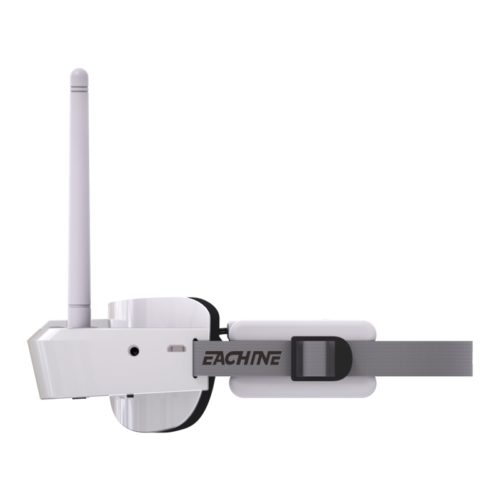

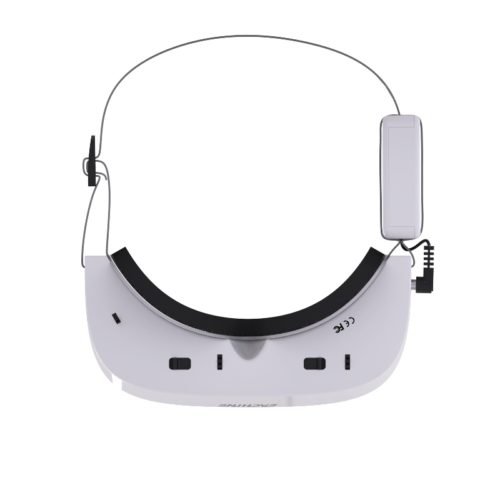

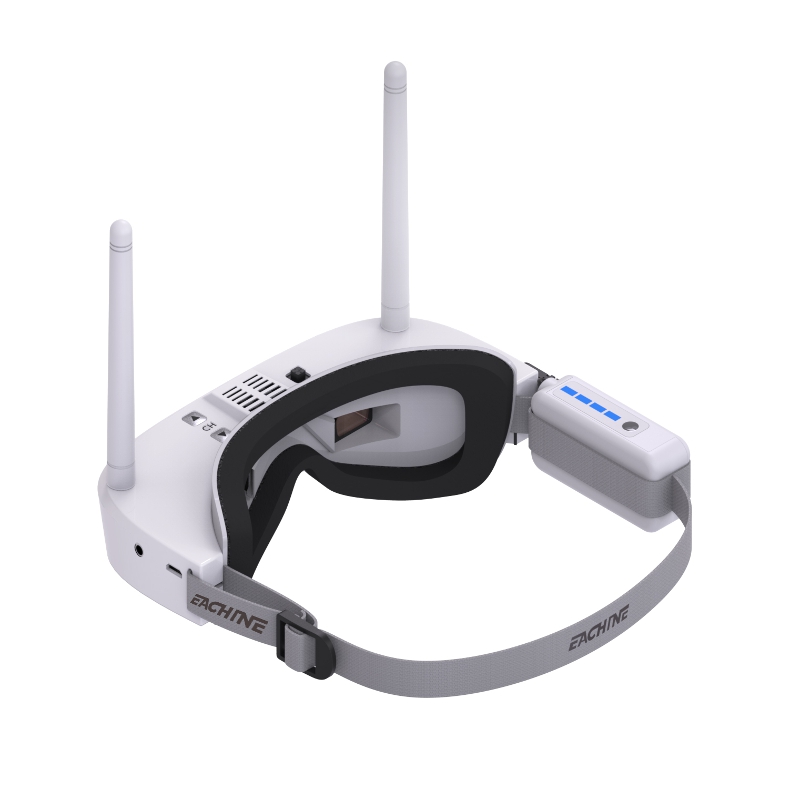

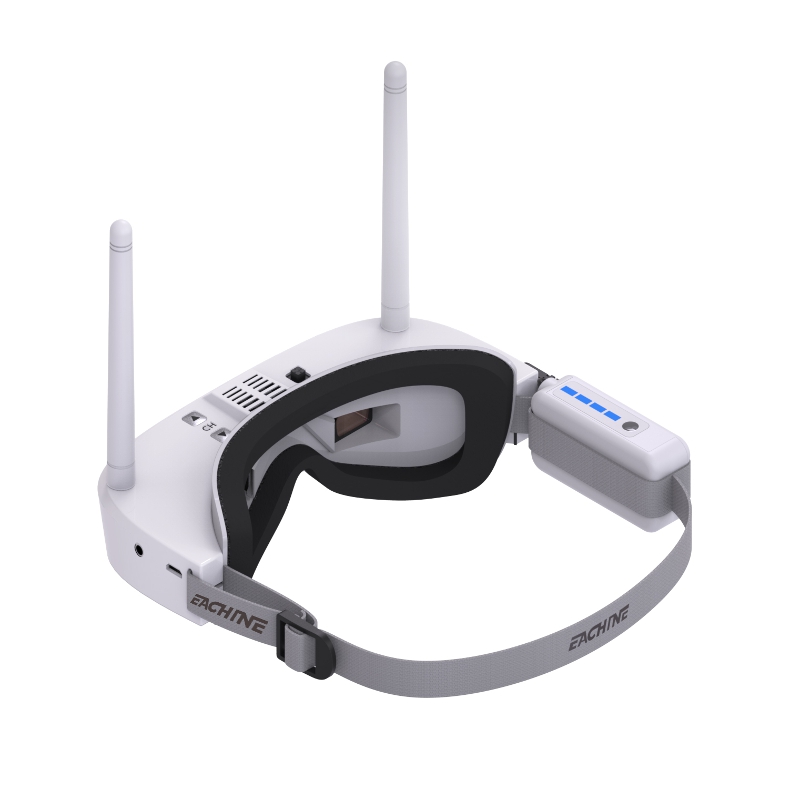

Description
Brand Name : Eachine
Item Name : EV100
Size : 165mm*76mm*30mm
Display
Resolution : 720*540 Pixel
FOV : 28° diagonal
IPD : 58-64 mm
Ratio : 4:3 (native)/16:9 adjustable
Ratio : 4:3 (native)/16:9 adjustable
Focal length adjusting: under 400 degree of myopia
Specification
Frequency : 5.8G 5333Mhz-5945Mhz
Sensitivity : <=-93dB
Antenna Impedance : 50Ω
Antenna Gain : 3dBi
Antenna Connector : RP-SMA
Video Formate : NTSC/PAL
Support AV IN/OUT
Support Focal Length/Brightness/Contrast Adjustment
Suport Firmware Upgrading
Power Input : 7.4V
Low Voltage : 6.8V

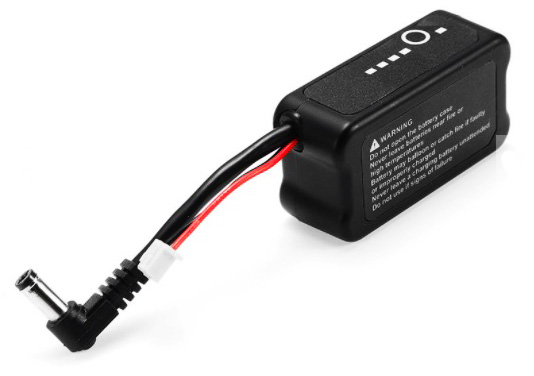

Battery : 2S 7.4V 1000mAh

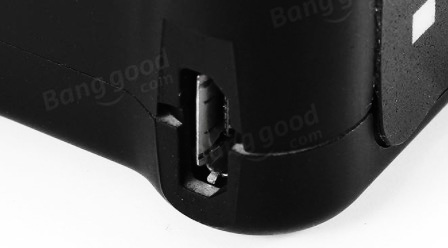

Charging : USB Cable(not included)
Working Temp. : -10℃-+40℃
