Specification:
Brand Name: Eachine
Model: Aurora 68

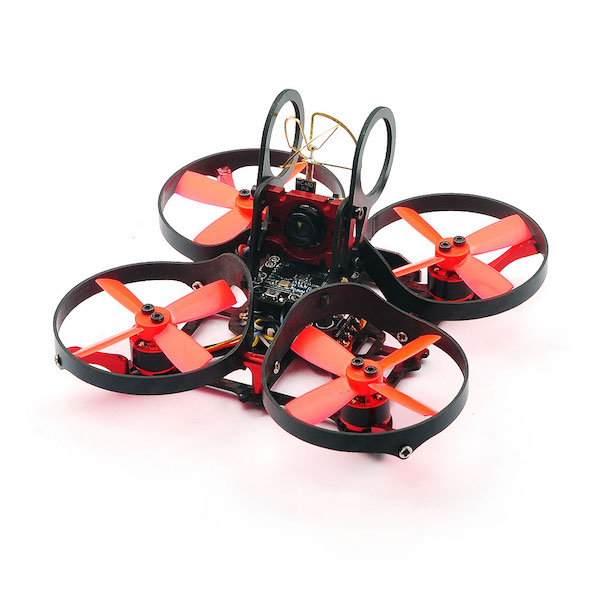

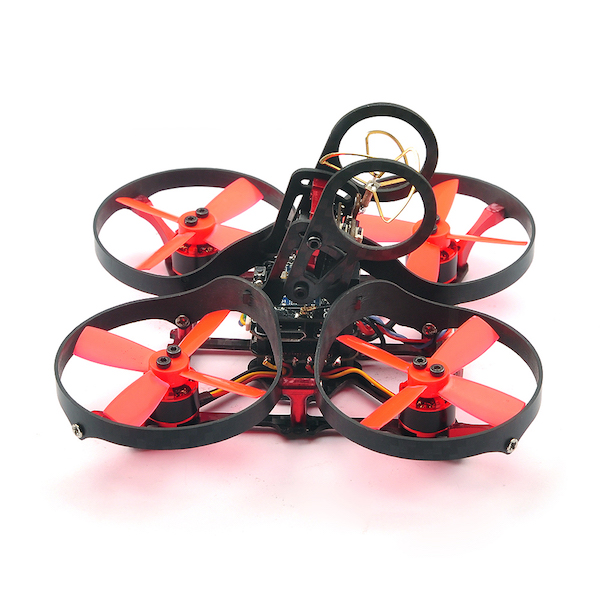

Item Name: Eachine Aurora 68 68mm Mini FPV Racing Drone
Wheelbase: 68mm

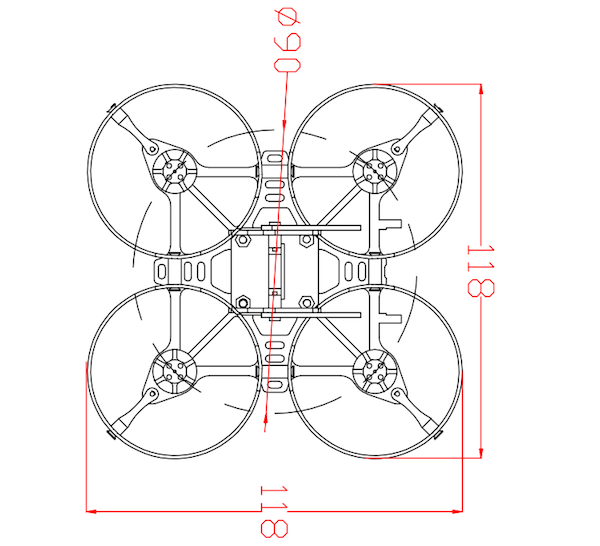

Size: 93mm*93mm*50mm

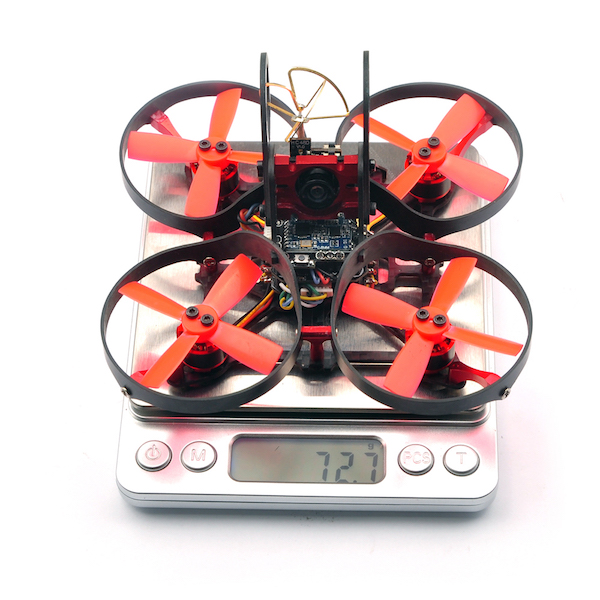

Weight: 48g( battery not include)
Receiver: ( Optional)
-Specktrum DSM2/DSMX Compatible receiver
-Flysky 8ch AFHDS2A receiver
-Frsky SBUS D8 mode receiver (RSSI Output)
Receiver: ( Optional)
-Specktrum DSM2/DSMX Compatible receiver
-Flysky 8ch AFHDS2A receiver
-Frsky SBUS D8 mode receiver (RSSI Output)
Motor: Eachine 1102 KV11500 brushless motor
ESC: 10A BLHELI_S 16.5 1-2S 4 in 1 ESC Dshot600
Propeller: 38.1mm 4-blades propeller
Camera: 600TVL HD CMOS 1/4 inch
VTX: 5.8g 25MW 48CH NTSC/PAL video transmitter
Flight Control: Minicube F3 Flight controller built-in OSD
Flight Control: Minicube F3 Flight controller built-in OSD
OSD: Betaflight OSD
Firmware of flight controller: Betaflight 3.1
Flight time : 3 minutes

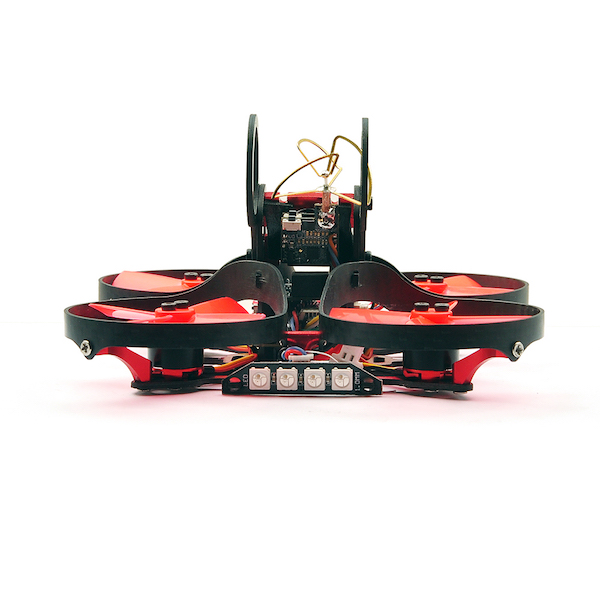

Rear LED Ready (LED_Strip function)
Buzzer Ready
Battery: 7.4V 400mah 40C lipo battery
Battery: 7.4V 400mah 40C lipo battery
Flight controller Specification:
-Size:27mm*27mm*5mm
-Mount hole: 20mm*20mm
-Processor: STM32 F303 MCU
-Sensor: SPI Sensor MPU6000
-Built-in Betaflight OSD ( Batt voltage, RSSI , Artificial Horizon , Fly mode , -Flytime, Craft name etz.)
-Firmware version: Betaflight 3.1 Dshot ready
-Target: OmnibusF3
ESC specification:
-Size:27mm*27mm*5mm
-Mount hole: 20mm*20mm
-Firmware version: BLHELI_S 16.5
– BB2, 48MHZ Chip
-Lipo Battery: 1-2S
-Con. Current: 10A
-Peak Current: 15A (10S)
-BEC: 5V @0.1A
-Programming: YES
-Betaflight passtrough ready
-Dshot600 ready(Default)
-Support oneshot42 oneshot125 Multishot Dshot
-Damped light on
